LLM-Driven Embodied AI for Task Planning and Navigation

A hierarchical agent framework for long-horizon task execution in dynamic simulated environments.

Overview

This is my primary postdoctoral research project, focusing on enabling embodied agents (in Omnigibson) to understand and execute complex, long-horizon human requests (e.g., “Tidy the house and take out the trash”). We are developing a hierarchical planning framework that integrates a high-level LLM “brain” with a low-level, spatially-aware VLM “agent” to bridge the gap between abstract commands and concrete physical actions.

Objectives (Key Questions)

  • To enable long-horizon, multi-room navigation: How can an agent efficiently navigate across multiple rooms to fulfill complex user requests that require several steps?
  • To build and utilize spatial “mental maps”: How can the system build a spatial representation of the house from visual inputs to intelligently decompose tasks and plan efficient actions?
  • To decompose abstract tasks: How can a high-level planner (LLM) effectively break down vague commands into a logical sequence of actionable sub-goals for the agent?

Core Methodology

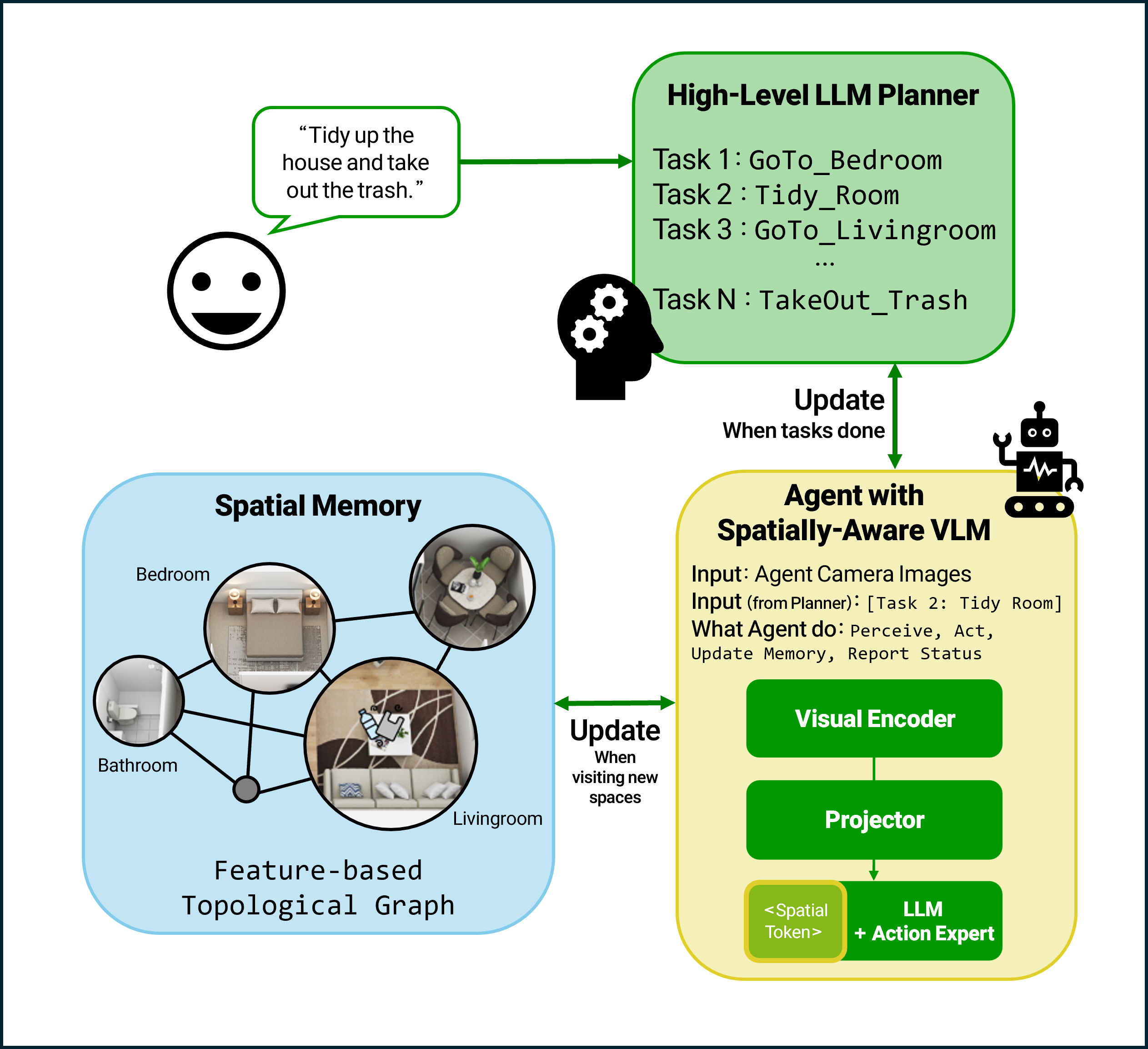

Overview of the hierarchical planning framework: The LLM Planner (top) provides sub-goals, the Spatial Memory (left) stores a topological map, and the Spatially-Aware Agent (right) perceives and acts.

Our framework consists of three core components that work in a hierarchical loop:

  • 1. High-Level Planner (LLM): Decomposes the abstract user request into a logical sequence of sub-goals (e.g., GOTO Bedroom, FIND Clothes, PLACE Clothes).
  • 2. Spatial Memory (Topological Graph): Dynamically builds a graph of the environment where nodes are key waypoints (locations) stored with their visual embeddings, and edges are navigable paths. This enables the LLM to map semantic goals (e.g., “kitchen”) to specific nodes.
  • 3. Low-Level Policy (VLM + RL):
    • Employs our Spatially-Aware VLM (foundational work) as the “eyes” for real-time scene perception.
    • An RL Policy executes low-level motor actions (e.g., move, grasp) to complete each sub-goal.
    • The agent reports task status (e.g., Success, Failure) to the LLM, which can then re-plan if necessary.

Current Status & Next Steps

This project is currently in active development. We are implementing the topological graph memory and integrating the high-level LLM planner with the low-level VLM policy within the Omnigibson simulator. Our goal is to present this framework and its results at RSS 2026.
