Hexagonal Lattice IoT Clock

Overview

This project was developed as part of the 2020 Club Exhibition Project. It involved designing and constructing a custom clock featuring LED animations, combining both hardware and software elements.

This project was based on the instructables project

Key Contributions

• Hardware Design:

  • Used WeMos D1 mini Pro and WS2812 LED strip to create dynamic LED animations.

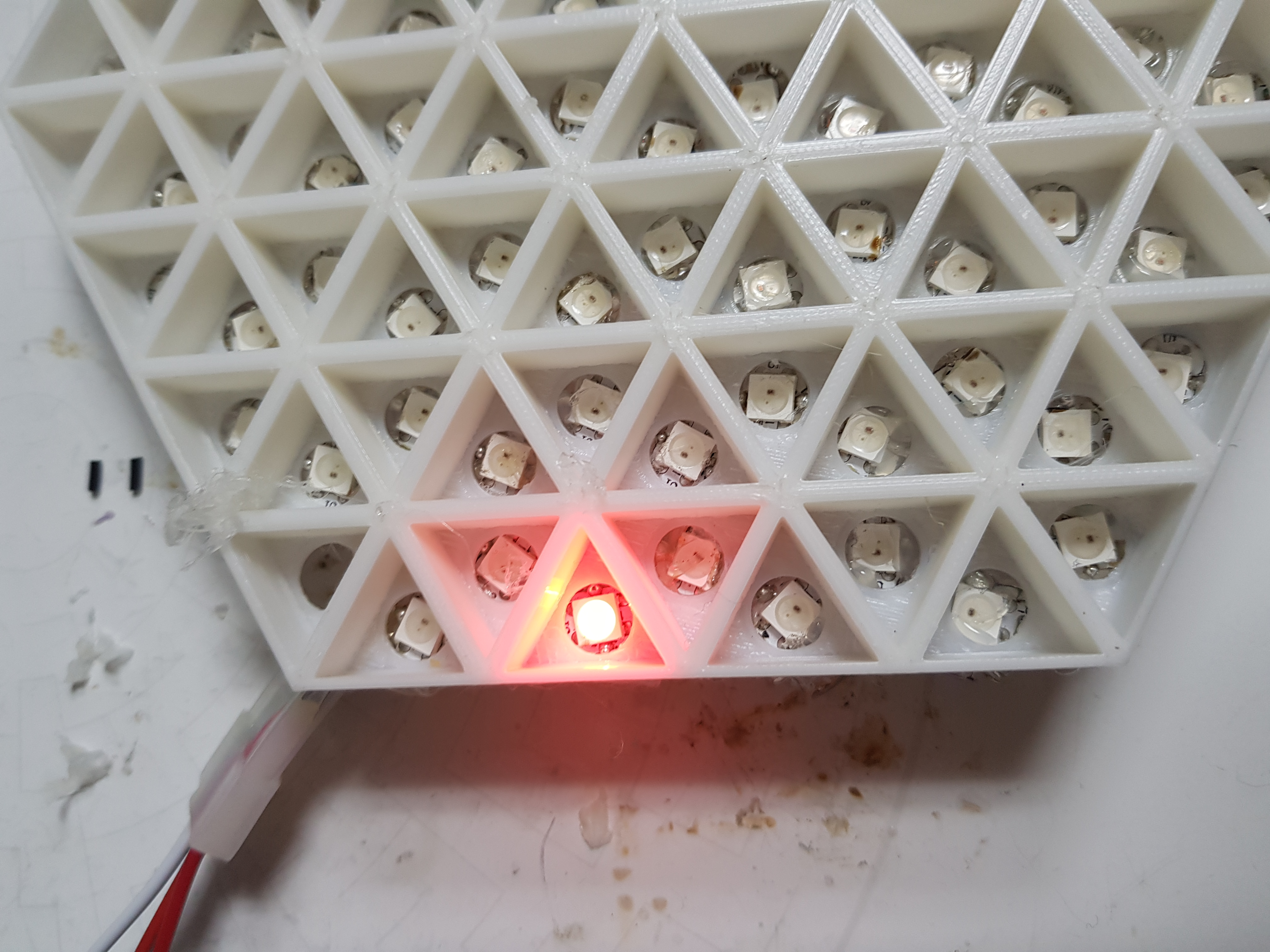

  • Built a 3D-printed clock frame using Fusion 360 for modeling and design.

• Software Development:

  • Programmed the clock functionality and LED animations using Arduino.

Tools and Technologies

• Arduino: For programming the microcontroller and controlling the LED animations.
• Fusion 360: For 3D modeling and printing the clock frame.

Results

• Successfully showcased the project at the 2020 Club Exhibition, demonstrating interactive LED animations synchronized with the clock’s timekeeping functionality.

Additionally…

• Memories of never-ending soldering…

• You can check demo video:
