Robust 3D Scene Understanding for Multi-View VLMs

Enhancing Vision-Language Models (VLMs) with 3D position embeddings to improve spatial reasoning in multi-view scenes.

Overview

Standard Vision-Language Models (VLMs) struggle to understand 3D spatial relationships (e.g., “behind,” “under”) when presented with multiple 2D images. This project, which serves as a foundation for my current embodied AI research, successfully developed a method to inject 3D geometric information into a 2D VLM (NVILA-based). This enhancement allows the VLM to build a robust 3D spatial awareness from multi-view inputs.

Objectives (Key Questions)

  • To achieve 3D spatial awareness from 2D images: How can a VLM understand that image patches from separate views (e.g., front, left, right) belong to the same continuous 3D space?
  • To integrate geometric data efficiently: How can we inject 3D geometric information (from LiDAR/point clouds) into a pre-trained VLM without costly full-scale retraining?

Core Methodology

  • 1. Data Pipeline Development:
    • Created an automated sampling pipeline to generate structured, multi-view (8-image) training samples from point-cloud-based datasets (e.g., ScanNet).
  • 2. 3D Position Embedding:
    • Derived 3D coordinates from point clouds corresponding to each 2D image patch.
    • Projected these coordinates into a high-dimensional 3D Position Embedding vector.
  • 3. Geometric-Visual Fusion:
    • Fused geometric awareness by summing the new 3D Position Embedding with the existing 2D Position Embedding of the ViT tokens.
  • 4. Efficient Fine-Tuning:
    • Froze the entire pre-trained VLM (ViT and LLM) and fine-tuned only the projection head to efficiently learn this new, spatially-aware representation.

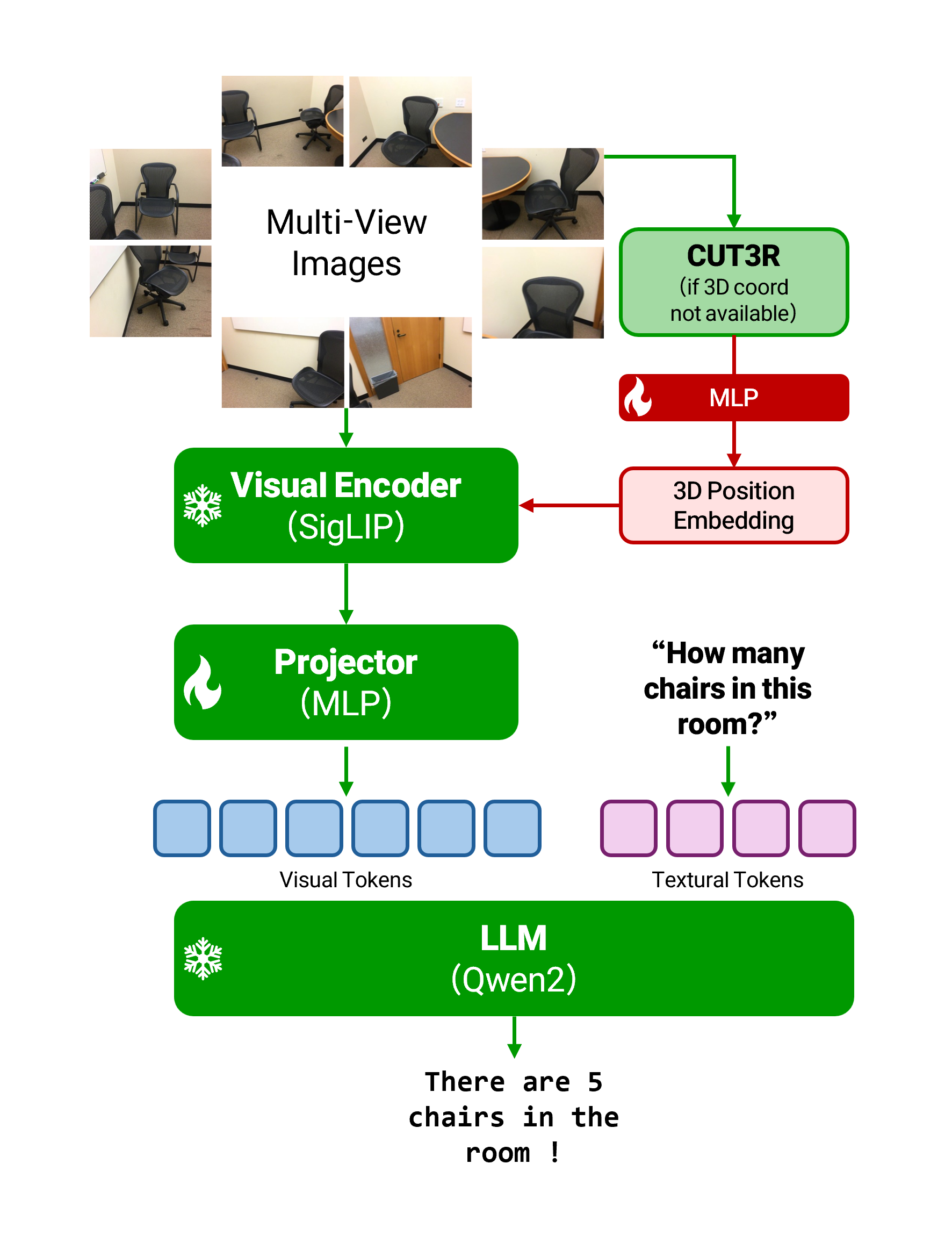

Left: The proposed model architecture, injecting 3D Position Embeddings. Right: Benchmark results on ScanQA and MuirBench.

Results

The proposed method significantly outperformed strong baselines on 3D spatial reasoning benchmarks:

  • ScanQA: Achieved 44.78% Refined EM@1 (outperforming Gemini 2.5 Pro at 40.86%).
  • MuirBench: Achieved 64.52% Accuracy (outperforming Gemini 2.5 Pro at 59.14%).
